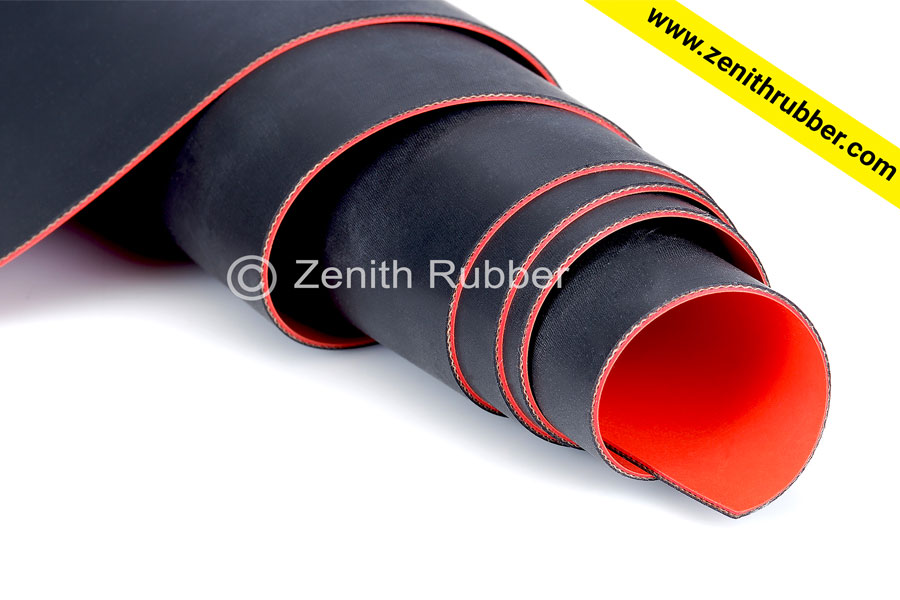

Anti Wicking Coated Fabric

Download TDS
Anti Wicking Fabric

Features

  • This has anti capillary quality which is used for Diaphragm Valve’s Application
  • It can withstand a temperature up to 250° C
  • It also can be used in experimental floats in Defence.
  • Available in different colors, sizes and thicknesses.

ZRF@1NE02NE02F

Code - ZRF@1VT02VT02T
Insertion Fabric Heat set Nylon 66 fabric
Polymer Viton, FKM, Nitrile, Chloroprene, NBR PVC, Butyl
Color As Per Customer Requirement
Breaking Strength Warp-200 kgs, Weft-200 kgs / Warp- 572 lbs, Weft- 550 lbs
Min. Thickness 1.5 mm ± 0.05 mm / 0.059 inch ± 0.002”
Width Available 1.0 Mtr (39.37”) to 2.0 Mtr (78.74”)
Coated Fabric Weight 2200 ± 200 gsm / 76.44 ± 1.4 oz/yd2
